ADR bearing designation: AY20R
ADR bearing designation: AY20R
This designation is only defining the size and shape of the ball bearing. Materials and performances have to be detailed during study and quotation.

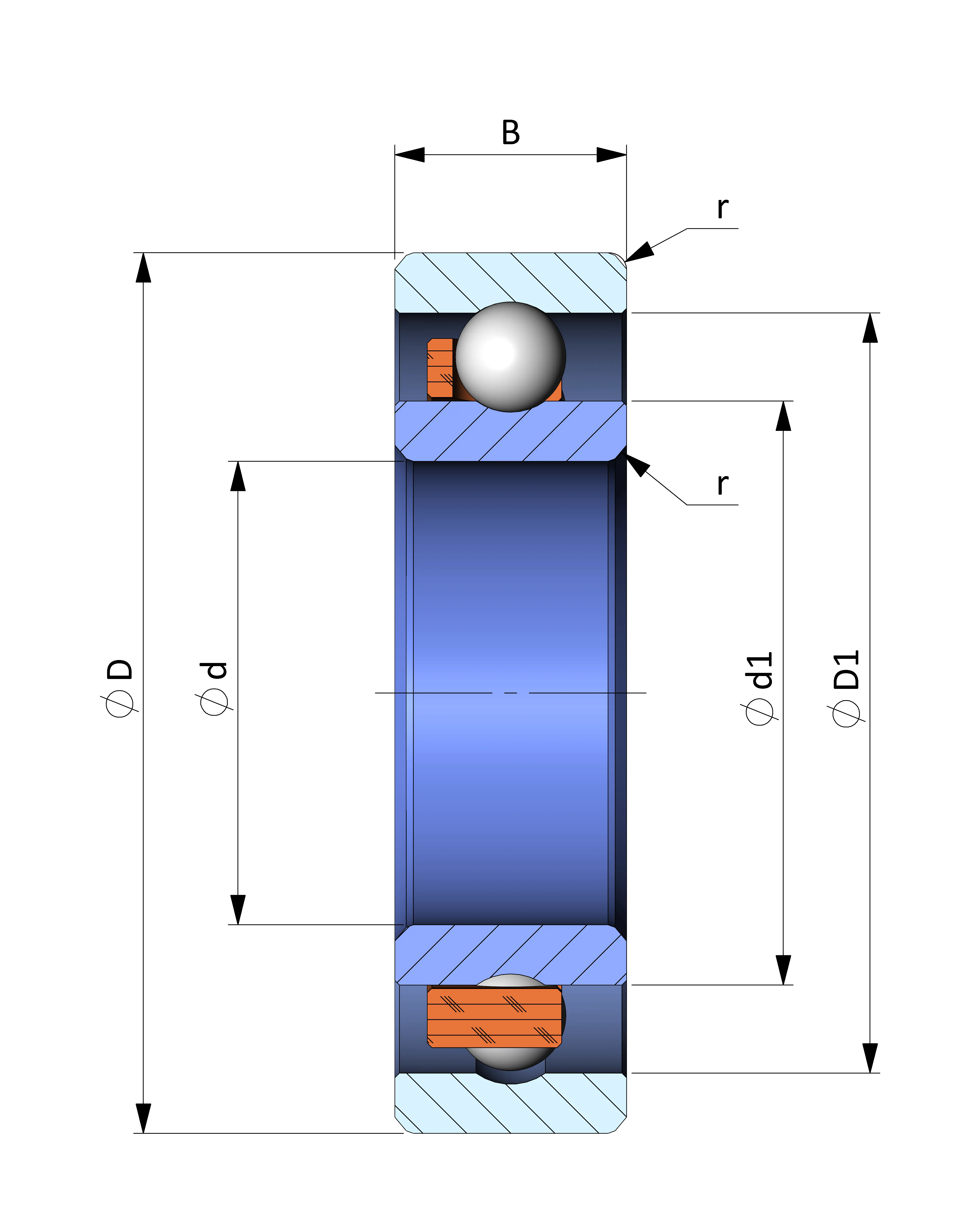

Bearing Dimension
| d | 20 mm | D | 37 mm | |
|---|---|---|---|---|
| d1 | 25.55 mm | D1 | 31.35 mm | |
| B* | 9 mm | r | 0.3 mm | |
|
* For protected bearing (ZZ, FF, -2RS) |
||||
Speed Limit
| Lubricant & Bearing Type 1 | |
|---|---|
| Ball bearing with crown cage R + grease | 26,000 rpm |
| Lubricant & Bearing Type 2 | |
|---|---|
| Contact us |
Basic Load Rating of Bearing
| Static radial capacity [Co] | 3,910 N |
|---|---|
| Static axial capacity [Ca] | 2,220 N |
| Dynamic radial capacity (X105CrMo17) [C] | 5,400 N |
| Dynamic radial capacity (100Cr6) [C] | 6,750 N |
| To improve Capacity and Life time Contact us | |
Bearing Version
| Serie | Rigid bearing - Metric serie |
|---|---|
| Conception | Deep groove ball bearing |
| Cage | With phenolic resin crown cage |
| For Bearing Protected with Shields or Seals Contact us | |
Tolerance, Internal Clearance and Calibration
| Tolerance class selected usually | Class “T4” for Rigid ball bearing |
|---|---|
| Class “TA4” for Thin Section ball bearing | |
| For Others Tolerances Refer to catalogue Page 32 to 43 | |
Assembling Configuration
ADR proposes different bearings pair configuration in standard, for example:
- DO for Duplex ball bearings in Back-to-Back configuration
- DX for Duplex ball bearings in Face-to-Face configuration
|
To define assembling configuration and preload value: |
Mean Mass
| Ball bearing mass | 38.00 g |
|---|
Additional Informations
Recommended lubricant operating temperature:
Open ball bearing: Oil, ISOFLEX PDP38 – Minimum -65°C and +100°C maximum
Protected ball bearing: Grease, NYCOGREASE GN10 – Minimum -73°C and +121°C maximum
In standard Stainless steel ring and cage, maximum temperature to 150°C
Phenolic resin cage, maximum temperature to 120°C
PTFE separators balls, maximum temperature to 150°C
For further information on the AY20R designation
Data are not contractually binding. ADR disclaims any responsibility for printing errors in this data sheet.
